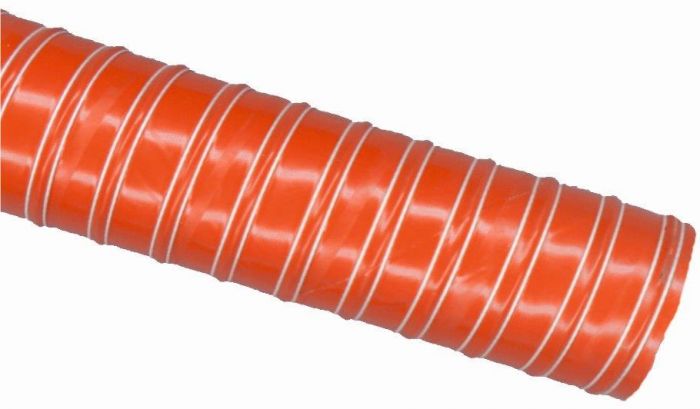

Sil II P - medium temperature hose -70°C - +250 °C - TSC-Wagner GmbH / medium temperature hoses -70 °C up to +250 °C

2-ply silicone coated PES fabric

temperature range:: -40 °C up to +180 °C
material:: - 2-ply silicone coated PES fabric; - steel wire with fixing glass cord
properties:: - vibration proof; - for permanently flexing; - good chemical resistance; - smooth inside; - symetrically bending; - lightweight and very flexible
applications:: - hot air hose for drying and combustion plants
delivery forms:: - Ø 19 up to 305 mm; - colour: red with a white cord; - lengths: standard 4 m
on request:: - other colours; - short or enlarged lengths; - custom made: for example with cuffs or ...
other versions:: - Sil I - 1-ply silicone coated glass fibre fabric; - Sil II - 2-ply silicone coated glass fibre fabric
delivery time:: - delivery time on request; - as long as on stock

Other versions

Sil II

inner ø at mm	outer ø at mm	bending radius at mm	working pressure at bar	vacuum at mm WS	roll length at m	weight in kg/m	article number	delivery time at days
19	21,6	19	2,500	7100	4	0,185	165-019-2P00	about 5-8
22	25,2	22	2,500	7100	4	0,205	165-022-2P00	about 5-8
25	28,2	25	2,500	7100	4	0,220	165-025-2P00	about 5-8
32	35,2	32	2,500	5900	4	0,240	165-032-2P00	about 5-8
38	41,2	38	2,400	5900	4	0,300	165-038-2P00	about 5-8
41	44,2	41	2,400	5900	4	0,315	165-041-2P00	about 5-8
44	47,2	44	2,400	5900	4	0,335	165-044-2P00	about 5-8
51	54,7	51	2,400	5400	4	0,350	165-051-2P00	about 5-8
55	58,7	55	2,300	5400	4	0,410	165-055-2P00	about 5-8
57	60,7	57	2,300	5400	4	0,420	165-057-2P00	about 5-8
60	63,7	60	2,200	5400	4	0,460	165-060-2P00	about 5-8
63	66,7	63	2,200	4700	4	0,480	165-063-2P00	about 5-8
65	68,7	65	2,200	4700	4	0,490	165-065-2P00	about 5-8
70	73,7	70	2,200	4700	4	0,520	165-070-2P00	about 5-8
76	79,7	76	2,100	4500	4	0,570	165-076-2P00	about 5-8
80	83,7	80	2,100	4100	4	0,610	165-080-2P00	about 5-8
83	86,7	83	2,100	4100	4	0,630	165-083-2P00	about 5-8
90	93,7	90	2,000	4100	4	0,680	165-090-2P00	about 5-8
95	98,7	95	2,000	4100	4	0,720	165-095-2P00	about 5-8
102	106,2	102	1,800	3600	4	0,760	165-102-2P00	about 5-8
108	112,2	108	1,800	3100	4	0,810	165-108-2P00	about 5-8
110	113,2	110	1,700	3100	4	0,860	165-110-2P00	about 5-8
114	118,2	114	1,700	2900	4	0,890	165-114-2P00	about 5-8
120	124,2	120	1,500	2100	4	0,940	165-120-2P00	about 5-8
127	131,7	127	1,500	2100	4	1,000	165-127-2P00	about 5-8
140	144,7	140	1,400	1800	4	1,110	165-140-2P00	about 5-8
152	157,2	152	1,100	1700	4	1,200	165-152-2P00	about 5-8
160	165,2	160	0,900	1500	4	1,270	165-160-2P00	about 5-8
165	170,2	165	0,900	1400	4	1,310	165-165-2P00	about 5-8
178	183,2	178	0,800	1400	4	1,420	165-178-2P00	about 5-8
180	185,2	180	0,800	1400	4	1,470	165-180-2P00	about 5-8
203	208,2	203	0,600	1000	4	1,640	165-203-2P00	about 5-8
229	234,2	229	0,500	800	4	1,900	165-229-2P00	about 5-8
254	259,2	254	0,400	700	4	2,130	165-254-2P00	about 5-8
305	310,2	305	0,200	500	4	2,570	165-305-2P00	about 5-8
all data at about +23 °C
