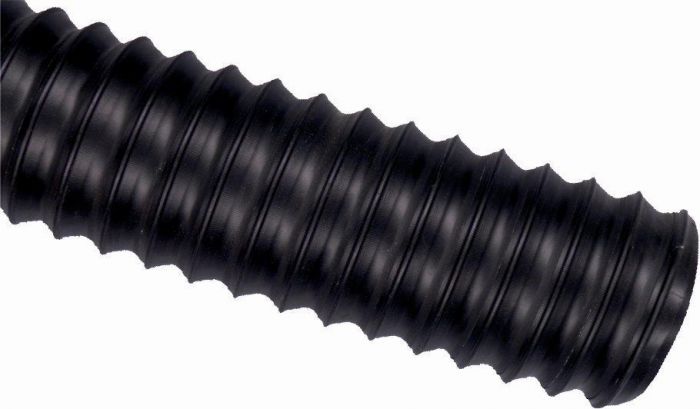

SantoFlex
TPE coated polyester fabric
- temperature range:
- -40 °C up to +150 °C
- material:
- - TPE coated polyester fabric
- - spring steel wire
- properties:
- - very good chemical resistance as fumes of acid, alkalis of solvents
- - long term flexible
- - uv - & ozon resistant
- - rot resistant
- - lightweight and very flexible
- applications:
- - for drying and combustion plants
- - for chemical fumes
- delivery forms:
- - Ø 20 up to 500 mm
- - colour: black
- - lengths: 6 / 10 / 15 m
- other versions:
- - SantoFlex se - hardly inflammable in acc. to DIN 4102 B1
- - SantoFlex crash - crash proof
| inner ø at mm | bending radius at mm | working pressure at bar | vacuum at mm WS | roll length at m | weight in kg/m | article number | delivery time at days |
|---|---|---|---|---|---|---|---|
| 20 | 20 | 0,450 | 2500 | 6 / 10 / 15 | 0,080 | 152-020-0000 | about 5-8 |
| 25 | 25 | 0,450 | 2000 | 6 / 10 /15 | 0,090 | 152-025-0000 | about 5-8 |
| 30 | 30 | 0,400 | 2000 | 6 / 10 / 15 | 0,140 | 152-030-0000 | about 5-8 |
| 40 | 40 | 0,350 | 1500 | 6 / 10 / 15 | 0,160 | 152-040-0000 | about 5-8 |
| 50 | 50 | 0,350 | 1000 | 6 / 10 / 15 | 0,210 | 152-050-0000 | about 5-8 |
| 60 | 60 | 0,350 | 800 | 6 / 10 / 15 | 0,250 | 152-060-0000 | about 5-8 |
| 70 | 70 | 0,300 | 800 | 6 / 10 / 15 | 0,290 | 152-070-0000 | about 5-8 |
| 75 | 75 | 0,200 | 700 | 6 / 10 / 15 | 0,310 | 152-075-0000 | about 5-8 |
| 80 | 80 | 0,200 | 600 | 6 / 10 / 15 | 0,330 | 152-080-0000 | about 5-8 |
| 100 | 100 | 0,150 | 500 | 6 / 10 / 15 | 0,560 | 152-100-0000 | about 5-8 |
| 120 | 120 | 0,150 | 400 | 6 / 10 / 15 | 0,670 | 152-120-0000 | about 5-8 |
| 125 | 125 | 0,130 | 400 | 6 / 10 / 15 | 0,700 | 152-125-0000 | about 5-8 |
| 140 | 140 | 0,120 | 400 | 6 / 10 / 15 | 0,730 | 152-140-0000 | about 5-8 |
| 150 | 150 | 0,110 | 400 | 6 / 10 / 15 | 0,780 | 152-150-0000 | about 5-8 |
| 175 | 175 | 0,090 | 300 | 6 / 10 / 15 | 0,820 | 152-175-0000 | about 5-8 |
| 200 | 200 | 0,080 | 200 | 6 / 10 / 15 | 1,270 | 152-200-0000 | about 5-8 |
| 250 | 250 | 0,070 | 200 | 6 / 10 / 15 | 152-250-0000 | about 5-8 | |
| 300 | 300 | 0,050 | 100 | 6 / 10 / 15 | 1,450 | 152-300-0000 | about 5-8 |
| 350 | 350 | 0,040 | 100 | 6 / 10 / 15 | 1,550 | 152-350-0000 | about 5-8 |
| 400 | 400 | 0,040 | 100 | 6 / 10 / 15 | 1,780 | 152-400-0000 | about 5-8 |
| 450 | 450 | 0,030 | 100 | 6 / 10 / 15 | 2,000 | 152-450-0000 | about 5-8 |
| 500 | 500 | 0,030 | 100 | 6 / 10 / 15 | 2,250 | 152-500-0000 | about 5-8 |
| all data at about +23 °C | |||||||
