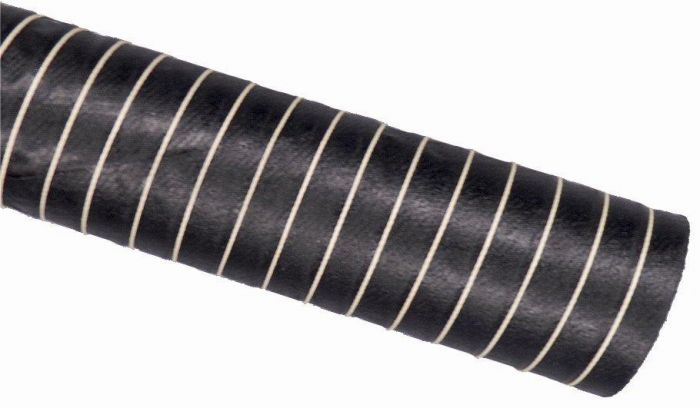

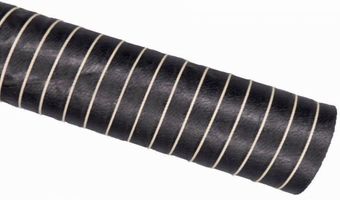

Neo I P
1-ply neoprene coated polyester fabric, lightweight, very flexibel, smooth inside
- temperature range:
- -35 °C up to +135 °C, peak +150 °C
- material:
- - 1-ply neoprene coated polyester fabric
- - spring steel spiral with white fixing glass cord
- properties:
- - good chemical resistance
- - robust
- - vibration proof
- - improved vacuum resistance
- - smooth inside
- - symmetrically bending
- - lightweight
- - very flexible
- applications:
- - drying and combustion plants
- - hot air and dust
- delivery forms:
- - Ø 25 up to 305 mm
- - colour: black with a white cord
- - length: standard 4 m
- on request:
- - other colours
- - short or enlarged lengths
- - custom made: for example with cuffs or ...
- other versions:
- - Neo II P - 2-ply neoprene coated polyester fabric (art.-no.: 153.2P00)
- - Neo II - 2-ply neoprene coated glass fibre fabric (art.-no.: 153.2000)
- - Neo I - 1-ply neoprene glass fibre fabric (art.-no.: 153.1000)
- delivery time:
- - on request
| inner ø at mm | outer ø at mm | bending radius at mm | working pressure at bar | vacuum at mm WS | roll length at m | weight in kg/m | article number |
|---|---|---|---|---|---|---|---|
| 25 | 27,0 | 12 | 1,400 | 5400 | 4 | 0,120 | 153-022-1P00 |
| 32 | 34,0 | 16 | 1,400 | 5100 | 4 | 0,130 | 153-032-1P00 |
| 38 | 40,6 | 19 | 1,400 | 5100 | 4 | 0,165 | 153-038-1P00 |
| 41 | 43,6 | 21 | 1,300 | 4600 | 4 | 0,177 | 153-041-1P00 |
| 44 | 46,6 | 22 | 1,200 | 4500 | 4 | 0,199 | 153-044-1P00 |
| 51 | 53,6 | 25 | 1,200 | 4500 | 4 | 0,250 | 153-051-1P00 |
| 55 | 57,6 | 27 | 1,100 | 4500 | 4 | 0,270 | 153-055-1P00 |
| 57 | 59,6 | 28 | 1,100 | 4100 | 4 | 0,280 | 153-057-1P00 |
| 60 | 62,6 | 30 | 1,100 | 4100 | 4 | 0,300 | 153-060-1P00 |
| 63 | 65,6 | 31 | 1,100 | 4100 | 4 | 0,320 | 153-063-1P00 |
| 65 | 67,6 | 33 | 1,100 | 4100 | 4 | 0,340 | 153-065-1P00 |
| 70 | 73,1 | 35 | 1,100 | 3600 | 4 | 0,395 | 153-070-1P00 |
| 76 | 79,1 | 38 | 1,000 | 3600 | 4 | 0,410 | 153-076-1P00 |
| 80 | 82,1 | 40 | 1,000 | 3100 | 4 | 0,440 | 153-080-1P00 |
| 83 | 86,1 | 41 | 1,000 | 3100 | 4 | 0,470 | 153-083-1P00 |
| 90 | 92,1 | 45 | 0,900 | 3000 | 4 | 0,490 | 153-090-1P00 |
| 95 | 98,1 | 47 | 0,900 | 2800 | 4 | 0,540 | 153-095-1P00 |
| 102 | 105,1 | 51 | 0,900 | 2700 | 4 | 0,570 | 153-102-1P00 |
| 108 | 111,1 | 54 | 0,800 | 2300 | 4 | 0,680 | 153-108-1P00 |
| 110 | 113,1 | 56 | 0,800 | 2100 | 4 | 0,690 | 153-110-1P00 |
| 114 | 117,1 | 57 | 0,800 | 2100 | 4 | 0,730 | 153-114-1P00 |
| 120 | 124,1 | 60 | 0,800 | 1900 | 4 | 0,760 | 153-120-1P00 |
| 127 | 130,1 | 63 | 0,800 | 1700 | 4 | 0,805 | 153-127-1P00 |
| 140 | 143,1 | 70 | 0,800 | 1500 | 4 | 0,885 | 153-140-1P00 |
| 152 | 155,6 | 76 | 0,600 | 1400 | 4 | 1,050 | 153-152-1P00 |
| 160 | 163,9 | 80 | 0,600 | 1200 | 4 | 1,090 | 153-160-1P00 |
| 165 | 168,9 | 85 | 0,600 | 1200 | 4 | 1,100 | 153-135-1P00 |
| 178 | 182,1 | 89 | 0,600 | 1000 | 4 | 1,210 | 153-178-1P00 |
| 180 | 184,1 | 95 | 0,600 | 1000 | 4 | 1,240 | 153-180-1P00 |
| 203 | 207,1 | 101 | 0,500 | 700 | 4 | 1,380 | 153-203-1P00 |
| 229 | 233,6 | 114 | 0,400 | 600 | 4 | 1,490 | 153-229-1P00 |
| 254 | 258,6 | 127 | 0,400 | 500 | 4 | 1,650 | 153-254-1P00 |
| 305 | 309,6 | 152 | 0,100 | 300 | 4 | 2,000 | 153-305-1P00 |
| all data at about +23 °C | |||||||
