Neo I - medium temperature hose -70°C - +250°C - TSC-Wagner GmbH / medium temperature hoses -70 °C up to +250 °C

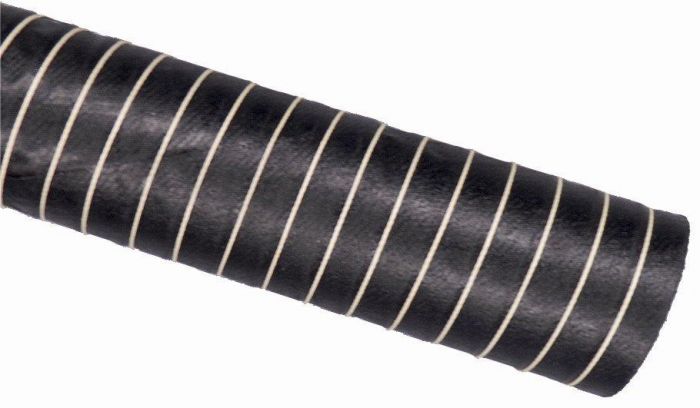

1-ply neoprene coated glass fibre, lightweight, very flexible, smooth inside

temperature range:: -35 °C up to +135 °C, peak +150 °C
material:: - 1-ply neoprene coated glass fibre; - spring steel spiral with white fixing glass cord
properties:: - good chemical resistance; - robust; - improved vacuum resistance; - smooth inside; - symmetrically bending; - lightweight; - very flexible
applications:: - drying and combustion plants; - hot air and fumes
delivery forms:: - Ø 13 up to 305 mm; - colour: black with a white cord; - length: standard 4 m
on request:: - other colours; - short or enlarged lengths; - custom made: for example with cuffs or ...
other versions:: - Neo II P - 2-ply neoprene coated polyester fabric (art.-no.: 153.2P00); - Neo II - 2-ply neoprene coated glass fibre fabric (art.-no.: 153.2000); - Neo I P - 1-ply neoprene coated polyester fabric (art.-no.: 153.1P00)
delivery time:: - on request; - many diameters are available ex stock; - subject to the goods being unsold

inner ø at mm	outer ø at mm	bending radius at mm	working pressure at bar	vacuum at mm WS	roll length at m	weight in kg/m	article number
13	15,0	7	1,500	5400	4	0,075	153-013-1000
19	21,0	9	1,500	5400	4	0,080	153-019-1000
22	24,0	11	1,500	5400	4	0,085	153-022-1000
25	27,0	12	1,400	5400	4	0,120	153-025-1000
32	34,0	16	1,400	5100	4	0,130	153-032-1000
38	40,6	19	1,400	5100	4	0,165	153-038-1000
41	43,6	21	1,300	4600	4	0,177	153-041-1000
44	46,6	22	1,200	4500	4	0,199	153-044-1000
51	53,6	25	1,200	4500	4	0,250	153-051-1000
55	57,6	27	1,100	4500	4	0,270	153-055-1000
57	59,6	28	1,100	4100	4	0,280	153-057-1000
60	62,6	30	1,100	4100	4	0,300	153-060-1000
63	65,6	31	1,100	4100	4	0,320	153-063-1000
65	67,6	33	1,100	4100	4	0,340	153-065-1000
70	73,1	35	1,100	3600	4	0,395	153-070-1000
76	79,1	38	1,000	3600	4	0,410	153-076-1000
80	82,1	40	1,000	3100	4	0,440	153-080-1000
83	86,1	41	1,000	3100	4	0,470	153-083-1000
90	92,1	45	0,900	3000	4	0,490	153-090-1000
95	98,1	47	0,900	2800	4	0,540	153-095-1000
102	105,1	51	0,900	2700	4	0,570	153-102-1000
108	111,1	54	0,800	2300	4	0,680	153-108-1000
110	113,1	56	0,800	2100	4	0,690	153-110-1000
114	117,1	57	0,800	2100	4	0,730	153-114-1000
120	124,1	60	0,800	1900	4	0,760	153-120-1000
127	130,1	63	0,800	1700	4	0,805	153-127-1000
140	143,1	70	0,800	1500	4	0,885	153-140-1000
152	155,6	76	0,600	1400	4	1,050	153-152-1000
160	163,9	80	0,600	1200	4	1,090	153-160-1000
165	168,9	85	0,600	1200	4	1,100	153-165-1000
178	182,1	89	0,600	1000	4	1,210	153-178-1000
180	184,1	95	0,600	1000	4	1,240	153-180-1000
203	207,1	101	0,500	700	4	1,380	153-203-1000
229	233,6	114	0,400	600	4	1,490	153-229-1000
254	258,6	127	0,400	500	4	1,650	153-254-1000
305	309,6	152	0,100	300	4	2,000	153-305-1000
all data at about +23 °C
