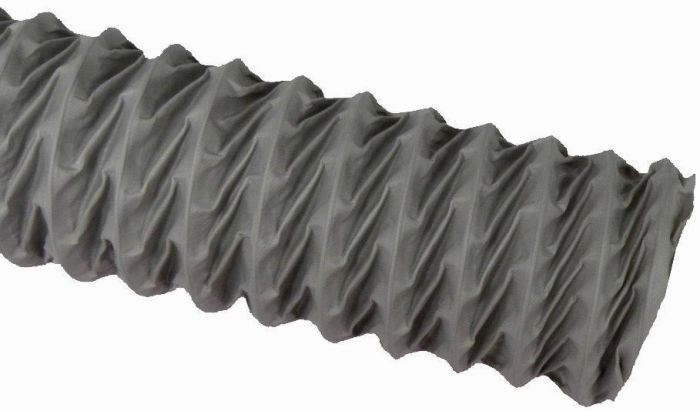

VentoFlex PVC 10
hardly inflammable, very flexible, lightweight, 10 m
- temperature range:
- -5 °C up to +70 °C
- material:
- - PVC coated polyamid fabric
- - spring steel spiral
- properties:
- - hardly inflammable acc. to M 2
- - compressible
- - very flexible
- - lightweight
- applications:
- - air condtioning
- - ventilation systems
- - fume extraction
- delivery forms:
- - Ø 76 up to 508 mm
- - 10 m per roll
- - color: grey
| inner ø at mm | bending radius at mm | working pressure at bar | air velocity at m/s | roll length at m | article number | delivery time at days |
|---|---|---|---|---|---|---|
| 76 | 42,56 | 0,040 | 30,00 | 10 | 106-076-0100 | about 5-8 |
| 82 | 45,92 | 0,040 | 30,00 | 10 | 106-082-0100 | about 5-8 |
| 102 | 57,12 | 0,040 | 30,00 | 10 | 106-102-0100 | about 5-8 |
| 127 | 71,12 | 0,040 | 30,00 | 10 | 106-127-0100 | about 5-8 |
| 152 | 85,12 | 0,040 | 30,00 | 10 | 106-152-0100 | about 5-8 |
| 160 | 89,60 | 0,040 | 30,00 | 10 | 106-160-0100 | about 5-8 |
| 180 | 100,80 | 0,040 | 30,00 | 10 | 106-180-0100 | about 5-8 |
| 203 | 113,68 | 0,040 | 30,00 | 10 | 106-203-0100 | about 5-8 |
| 229 | 128,24 | 0,040 | 30,00 | 10 | 106-229-0100 | about 5-8 |
| 254 | 142,24 | 0,040 | 30,00 | 10 | 106-254-0100 | about 5-8 |
| 305 | 170,80 | 0,040 | 30,00 | 10 | 106-305-0100 | about 5-8 |
| 315 | 176,40 | 0,040 | 30,00 | 10 | 106-315-0100 | about 5-8 |
| 356 | 199,36 | 0,040 | 30,00 | 10 | 106-356-0100 | about 5-8 |
| 406 | 227,36 | 0,040 | 30,00 | 10 | 106-406-0100 | about 5-8 |
| 457 | 255,92 | 0,040 | 30,00 | 10 | 106-457-0100 | about 5-8 |
| 508 | 284,48 | 0,040 | 30,00 | 10 | 106-508-0100 | about 5-8 |
| all data at about +23 °C | ||||||
