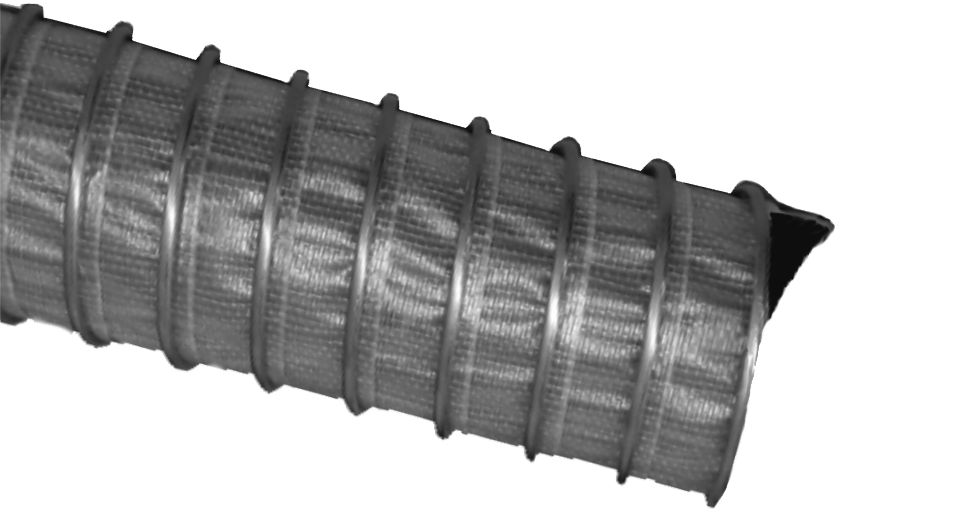

Gripflex PE PE el
PE-beschichtetes PE-Gewebe / PE-Folie elektrisch leitend
- Einsatztemperatur:
- -20 °C bis +70 °C
- Material:
- - PE-beschichtetes PE-Gewebe
- - PE-Folie elektrisch leitend
- - verzinkte außenliegende Klemmprofilwendel
- Eigenschaften:
- - innen Oberflächenwiderstand Ro ≤ 106 Ω
- - umweltfreundliches Material
- - gute chemische Beständigkeit
- - weichmacherfrei
- - halogenfrei
- - gute mechanische Belastbarkeit
- - sehr gute Reißfestigkeit
- - robust
- - hohe Zugfestigkeit
- - flexibel
- - stauchbar bis 1:6
- Einsatz:
- - Absaugung von chemischen Dämpfen
- Lieferformen:
- - Ø 50 bis 900 mm
- - Farbe: schwarz
- - Standardlängen: 2 - 10 m
- Auf Anfrage:
- - Kurzlängen
- - Überlängen bis max. 20 m
- - Klemmprofil aus Edelstahl
- - in verschiedenen Güten
- - konfektioniert nach Kundenwunsch
Die Leitfähigkeit der Folie wird für einen Einsatz unter folgenden Bedingungen garantiert:
- trockene Lagerhaltung bei +20 °C
- die Folie wird keiner dauerhaften UV-Strahlung ausgesetzt
- Luftfeuchtigkeit bei 50 - 80 %
Innen ø in mm | Gewicht in kg/m | Biegeradius in mm | Betriebsdruck in bar | Unterdruck in bar | Rollenlänge in m | max. Fertigungs-länge in m | Art.Nr. | Lieferzeit |
---|---|---|---|---|---|---|---|---|
50 | 0,400 | 30 | 0,900 | 0,400 | 2 - 10 | 10 | 100-050-1300 | circa 2 Wochen |
60 | 0,500 | 36 | 0,780 | 0,280 | 2 - 10 | 10 | 100-060-1300 | circa 2 Wochen |
65 | 0,500 | 39 | 0,680 | 0,240 | 2 - 10 | 10 | 100-065-1300 | circa 2 Wochen |
70 | 0,500 | 42 | 0,670 | 0,210 | 2 - 10 | 10 | 100-070-1300 | circa 2 Wochen |
75 | 0,500 | 45 | 0,620 | 0,180 | 2 - 10 | 10 | 100-075-1300 | circa 2 Wochen |
80 | 0,600 | 48 | 0,610 | 0,160 | 2 - 10 | 10 | 100-080-1300 | circa 2 Wochen |
90 | 0,600 | 54 | 0,560 | 0,120 | 2 - 10 | 10 | 100-090-1300 | circa 2 Wochen |
100 | 0,600 | 60 | 0,510 | 0,100 | 2 - 10 | 10 | 100-100-1300 | circa 2 Wochen |
110 | 0,600 | 66 | 0,480 | 0,080 | 2 - 10 | 10 | 100-110-1300 | circa 2 Wochen |
120 | 0,600 | 72 | 0,360 | 0,070 | 2 - 10 | 10 | 100-120-1300 | circa 2 Wochen |
125 | 0,700 | 75 | 0,330 | 0,060 | 2 - 10 | 10 | 100-125-1300 | circa 2 Wochen |
130 | 0,700 | 78 | 0,280 | 0,060 | 2 - 10 | 10 | 100-130-1300 | circa 2 Wochen |
140 | 0,700 | 84 | 0,250 | 0,050 | 2 - 10 | 10 | 100-140-1300 | circa 2 Wochen |
150 | 0,800 | 90 | 0,220 | 0,040 | 2 - 10 | 10 | 100-150-1300 | circa 2 Wochen |
160 | 0,800 | 96 | 0,210 | 0,040 | 2 - 10 | 10 | 100-160-1300 | circa 2 Wochen |
170 | 0,800 | 102 | 0,190 | 0,040 | 2 - 10 | 10 | 100-170-1300 | circa 2 Wochen |
175 | 0,900 | 105 | 0,185 | 0,030 | 2 - 10 | 10 | 100-175-1300 | circa 2 Wochen |
180 | 0,900 | 108 | 0,170 | 0,030 | 2 - 10 | 10 | 100-180-1300 | circa 2 Wochen |
200 | 1,000 | 120 | 0,150 | 0,020 | 2 - 10 | 10 | 100-200-1300 | circa 2 Wochen |
215 | 1,100 | 129 | 0,130 | 0,020 | 2 - 10 | 10 | 100-215-1300 | circa 2 Wochen |
225 | 1,100 | 135 | 0,120 | 0,020 | 2 - 10 | 10 | 100-225-1300 | circa 2 Wochen |
250 | 1,300 | 175 | 0,100 | 0,020 | 2 - 10 | 10 | 100-250-1300 | circa 2 Wochen |
275 | 1,400 | 193 | 0,080 | 0,010 | 2 - 10 | 10 | 100-275-1300 | circa 2 Wochen |
300 | 1,500 | 210 | 0,080 | 0,010 | 2 - 10 | 10 | 100-300-1300 | circa 2 Wochen |
315 | 1,600 | 221 | 0,060 | 0,010 | 2 - 10 | 10 | 100-315-1300 | circa 2 Wochen |
325 | 1,700 | 228 | 0,060 | 0,010 | 2 - 10 | 10 | 100-325-1300 | circa 2 Wochen |
350 | 1,900 | 245 | 0,050 | 0,008 | 2 - 10 | 10 | 100-350-1300 | circa 2 Wochen |
375 | 2,200 | 263 | 0,050 | 0,007 | 2 - 10 | 10 | 100-375-1300 | circa 2 Wochen |
400 | 2,400 | 280 | 0,050 | 0,006 | 2 - 10 | 10 | 100-400-1300 | circa 2 Wochen |
450 | 2,700 | 360 | 0,040 | 0,005 | 2 - 10 | 10 | 100-450-1300 | circa 2 Wochen |
500 | 3,100 | 400 | 0,040 | 0,004 | 2 - 10 | 10 | 100-500-1300 | circa 2 Wochen |
600 | 3,900 | 480 | 0,040 | 0,003 | 2 - 10 | 10 | 100-600-1300 | circa 2 Wochen |
700 | 4,500 | 560 | 0,030 | 0,002 | 2 - 10 | 10 | 100-700-1300 | circa 2 Wochen |
800 | 5,200 | 640 | 0,020 | 0,002 | 2 - 10 | 10 | 100-800-1300 | circa 2 Wochen |
900 | 6,000 | 720 | 0,020 | 0,001 | 2 - 10 | 10 | 100-900-1300 | circa 2 Wochen |
alle Daten bei ca. +23 °C |
