SpiraFlex PE / PE el - SpiraFlex hose for chemical & solvent fumes - TSC-Wagner GmbH / SpiraFlex hoses for chemical & solvent fumes

LDPE coated HDPE fabric

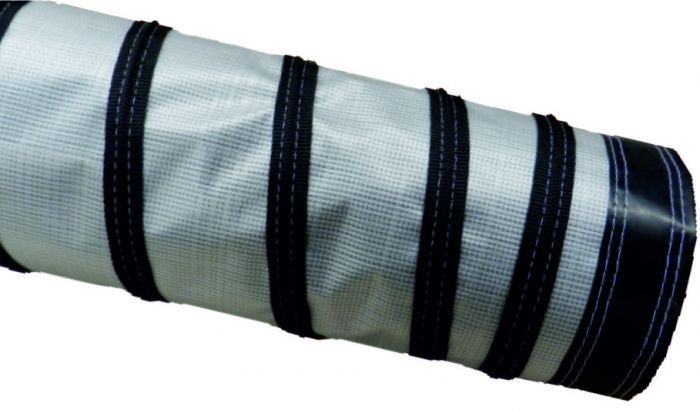

temperature range:: -40 °C up to +80 °C image similar
material:: - LDPE coated HDPE fabric; - PTFE yarn; - PP cover band; - spring steel spiral
properties:: - lightweight; - extremly compressible; - good chemical resistance; - SpiraFlex Pe el -> electrically conductive film inside, Ro ≤ 10⁶ Ω, black
applications:: - paint mist; - solvent fumes; - paint mist-, solvents-, chemical fumes; - for suction with reduced spiral distance
delivery forms:: - Ø 100 up to 900 mm; - 2 up to 10 m
on request:: - with-end rings; - traversable; - with hanging straps

inner ø at mm	bending radius at mm	working pressure at bar	roll length at m	helix pitch	weight in kg/m	article number	delivery time
150	150	0,640	2 - 10	115	0,280	120-150-0000	about 2 - 3 weeks
152	152	0,640	2 - 10	115	0,280	120-152-0000	about 2 - 3 weeks
160	160	0,620	2 - 10	115	0,280	120-160-0000	about 2 - 3 weeks
175	175	0,600	2 - 10	115	0,290	120-175-0000	about 2 - 3 weeks
180	180	0,600	2 - 10	135	0,290	120-180-0000	about 2 - 3 weeks
200	200	0,550	2 - 10	135	0,300	120-200-0000	about 2 - 3 weeks
203	203	0,550	2 - 10	150	0,300	120-203-0000	about 2 - 3 weeks
220	220	0,500	2 - 10	150	0,320	120-220-0000	about 2 - 3 weeks
225	225	0,500	2 - 10	150	0,320	120-225-0000	about 2 - 3 weeks
254	254	0,450	2 - 10	150	0,340	120-254-0000	about 2 - 3 weeks
275	275	0,400	2 - 10	180	0,350	120-275-0000	about 2 - 3 weeks
300	300	0,350	2 - 10	180	0,360	120-300-0000	about 2 - 3 weeks
305	305	0,350	2 - 10	180	0,360	120-305-0000	about 2 - 3 weeks
325	325	0,330	2 - 10	180	0,400	120-325-0000	about 2 - 3 weeks
350	350	0,300	2 - 10	180	0,460	120-350-000	about 2 - 3 weeks
356	356	0,300	2 - 10	180	0,460	120-356-0000	about 2 - 3 weeks
400	400	0,250	2 - 10	270	0,500	120-400-0000	about 2 - 3 weeks
407	407	0,250	2 - 10	270	0,510	120-407-0000	about 2 - 3 weeks
425	425	0,240	2 - 10	270	0,690	120-425-0000	about 2 - 3 weeks
450	450	0,230	2 - 10	270	0,740	120-450-0000	about 2 - 3 weeks
457	457	0,230	2 - 10	270	0,740	120-457-0000	about 2 - 3 weeks
500	500	0,200	2 - 10	270	0,810	120-500-0000	about 2 - 3 weeks
508	508	0,200	2 - 10	270	0,820	120-508-0000	about 2 - 3 weeks
525	525	0,190	2 - 10	270	0,980	120-525-0000	about 2 - 3 weeks
550	550	0,180	2 - 10	270	1,000	120-550-0000	about 2 - 3 weeks
560	560	0,180	2 - 10	270	1,050	120-560-0000	about 2 - 3 weeks
600	600	0,170	2 - 10	270	1,120	120-600-0000	about 2 - 3 weeks
607	607	0,170	2 - 10	270	1,250	120-607-0000	about 2 - 3 weeks
650	650	0,160	2 - 10	270	1,310	120-650-0000	about 2 - 3 weeks
all data at about +23 °C
