SpiraFlex CSM
CSM coated polyester fabric, good chemical resistance
- temperature range:

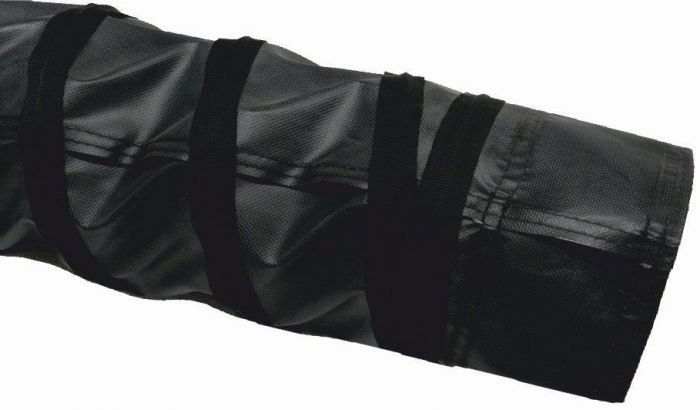

- -35 °C up to +175 °C image similar
- material:
- - CSM coated polyester fabric
- - PP cover band
- spring steel spiral - properties:
- - good resistance against chemicals
- - very good UV and ozone resistance
- - very flexible and compressible
- - small bending radius
- - vibration proof
- - high tensile strength
- applications:
- - chemical fumes
- - exhausts
- - outside usage
- delivery forms:
- - Ø 100 up to 900 mm
- - 2 up to 10 m
- on request:
- - with end rings
- - traversable
- - with hanging straps
- - over- and short length possible
| inside ø at mm | helix pitch at mm | working pressure at bar | bending radius at mm | vacuum at bar | weight in kg/m | roll length at m | article number | delivery time |
|---|---|---|---|---|---|---|---|---|
| 150 | 115 | 0,640 | 105 | 0,05 | 1,100 | 2 - 10 | 126-150-0115 | about 2 - 3 weeks |
| 200 | 135 | 0,550 | 140 | 0,05 | 1,200 | 2 - 10 | 126-200-0135 | about 2 - 3 weeks |
| 250 | 150 | 0,450 | 175 | 0,03 | 1,350 | 2 - 10 | 126-250-0150 | about 2 - 3 weeks |
| 300 | 180 | 0,350 | 210 | 0,03 | 1,440 | 2 - 10 | 126-300-0180 | about 2 - 3 weeks |
| 400 | 270 | 0,250 | 280 | 0,03 | 2,050 | 2 - 10 | 126-400-0270 | about 2 - 3 weeks |
| 500 | 270 | 0,200 | 350 | 0,03 | 3,300 | 2 - 10 | 126-500-0270 | about 2 - 3 weeks |
| 600 | 270 | 0,170 | 420 | 0,02 | 4,500 | 2 - 10 | 126-600-0270 | about 2 - 3 weeks |
| 700 | 270 | 0,150 | 490 | 0,02 | 5,600 | 2 - 10 | 126-700-0270 | about 2 - 3 weeks |
| 800 | 270 | 0,130 | 560 | 0,01 | 6,800 | 2 - 10 | 126-800-0270 | about 2 - 3 weeks |
| 900 | 270 | 0,110 | 630 | 0,01 | 8,400 | 2 - 10 | 126-900-0270 | about 2 - 3 weeks |
| 1000 | 270 | 0,100 | 700 | 0,01 | 10,000 | 2 - 10 | 126-1000-0270 | about 2 - 3 weeks |
| all data at about +23 °C | ||||||||
