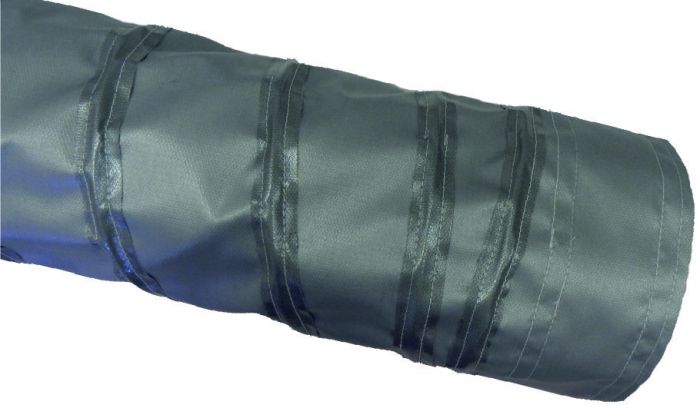

SpiraFlex 450

up to +450 °C, 2-ply, temperature resistant silicone coated glass fibre

temperature range:

   -60 °C up to +450 °C                                                        image similar



material:

- 2-ply

- outer ply: temperature resistant silicone coated glass fibre

- inner ply: insulating glass fibre

- spring steel wire

- spiral cover tape made form temperature resistand fabric



properties:

- with 50 mm wire pitch as standard

- smooth inside for optimum flow

- lightwight

- compressible

- with spiral free ends as standard



applications:

- exhaust technology

- oven and furnace building

- process heat at machnineries and plants



delivery forms:

- Ø 150 up to 900 mm

- colour: outside: grey, inside: white

- 2 up to 10 m without extra charge



on request:

- each diameter between above mentioned is possible

- with rings at the end of flanges

- prepared for grounding the spiral

- with larger wire pitch for blowing application

- short length or longer length

- custom made solutions in many different versions
