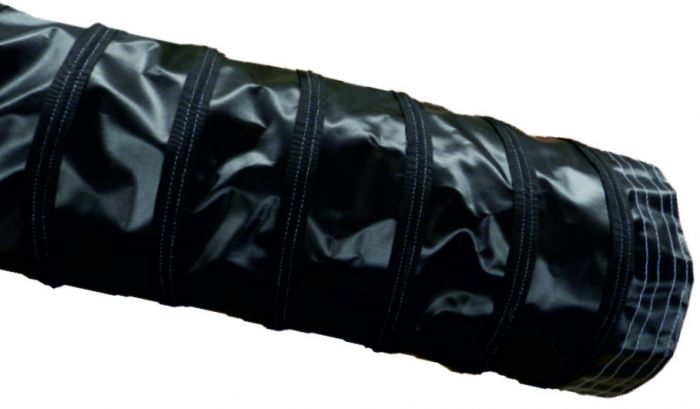

SpiraFlex PVC a - SpiraFlex antistatic & electrically conductive suction & blower hose - TSC-Wagner GmbH / SpiraFlex - antistatic & electrically conductive suction & blower hoses

antistatic Ro ≤ 10^9 Ω

work. temperature:: -40 °C up to +80 °C, peak +95 °C image similar
material:: - hose wall: PVC-coated polyester fabric; - conductive version: antistatic Ro ≤ 10⁹ Ω; - spiral: spring steel wire; - cover: weaved PP-tape sewed on top
properties:: - very good flexibility; - at low temperatures too; - flame retardant; - good compressibility; - outer wearstrip profil
application:: - suction of dust and solvent fumes; - air conditioning and ventilation; - heating of tents and building sites
delivery forms:: - Ø 150 bis 900 mm; - colour: black; - length between 2 and 10 m possible; - standard; - with spiral free cuffs
on request:: - short length; - PVC cover; - with sewed in rings at the end for connecting with luttenclamps; - with sewed on loops for hang up; - with sewed on transport bag; - insulated; - antistatic: Ro ≤ 10⁹ Ω

inner ø at mm	bending radius at mm	working pressure at bar	vacuum at mm WS	roll length at m	weight in kg/m	article number	delivery time
150	105	0,64	5100	3 - 10	1,1	135-150-0000	about 2 - 3 weeks
200	140	0,55	5100	3 - 10	1,2	135-200-0000	about 2 - 3 weeks
250	175	0,45	3100	3 - 10	1,4	135-250-0000	about 2 - 3 weeks
300	210	0,35	3100	3 - 10	1,5	135-300-0000	about 2 - 3 weeks
350	250	0,30	3100	3 - 10	1,8	135-350-0000	about 2 - 3 weeks
400	280	0,25	3100	3 - 10	2,0	135-400-0000	about 2 - 3 weeks
450	320	0,22	3100	3 - 10	2,6	135-450-0000	about 2 - 3 weeks
500	350	0,20	3100	3 - 10	3,3	135-500-0000	about 2 - 3 weeks
600	420	0,17	2000	3 - 10	4,5	135-600-0000	about 2 - 3 weeks
700	490	0,15	2000	3 - 10	5,6	135-700-0000	about 2 - 3 weeks
800	560	0,13	1000	3 - 10	6,8	135-800-0000	about 2 - 3 weeks
900	630	0,11	1000	3 - 10	8,4	135-900-0000	about 2 - 3 weeks
1000	700	0,10	1000	3 - 10	10	135-1000-0000	about 2 - 3 weeks
all data at about +23 °C
