SpiraFlex PE el - SpiraFlex antistatic & electrically conductive suction & blower hose - TSC-Wagner GmbH / SpiraFlex - antistatic & electrically conductive suction & blower hoses

inside: PE-film electrically conductive (black) Ro ≤ 10^6 Ω

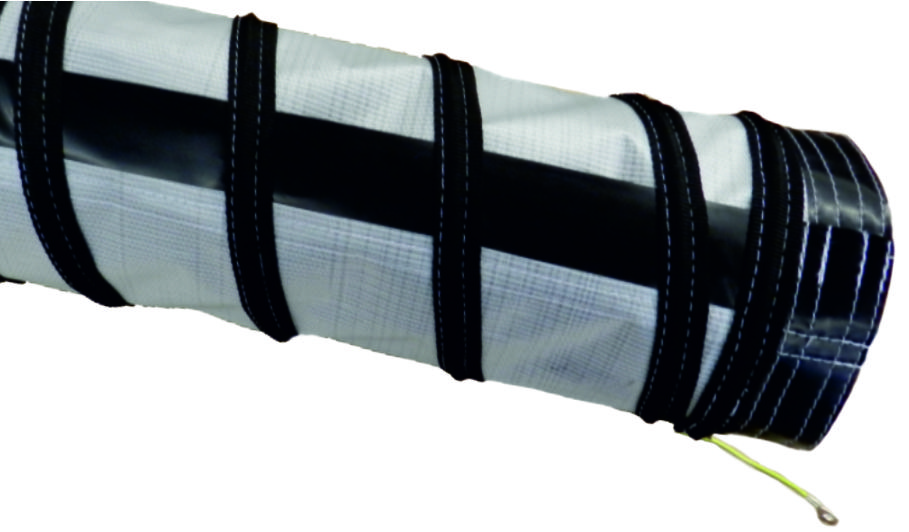

temperature range:: -20 °C up to +70 °C image similar
material:: - outside: LDPE coated HDPE-fabric; - inside: PE-film electrically conductive (black) Ro ≤ 10⁶ Ω
- PTFE yarn; - stainless spring steel wire; - PP-spiral band
properties:: - lightweight; - extremly compressible; - good chemical resistance
applications:: - tent heating; - driving equipment; - chemical fumes; - for suction with reduced spiral distance
delivery forms:: - Ø 100 up to 900 mm; - 2 up to 10 m
on request:: - with end rings; - traversable; - with hanging straps

inner ø at mm	bending radius at mm	working pressure at bar	roll length at m	helix pitch	weight at kg/m	article number	delivery time
150	150	0,640	2 - 10	115	0,280	120-150-0115	about 2 - 3 weeks
152	152	0,640	2 - 10	115	0,280	120-152-0115	about 2 - 3 weeks
160	160	0,620	2 - 10	115	0,280	120-160-0115	about 2 - 3 weeks
175	175	0,600	2 - 10	115	0,290	120-175-0115	about 2 - 3 weeks
180	180	0,600	2 - 10	135	0,290	120-180-0135	about 2 - 3 weeks
200	200	0,550	2 - 10	135	0,300	120-200-0135	about 2 - 3 weeks
203	203	0,550	2 - 10	150	0,300	120-203-0150	about 2 - 3 weeks
220	220	0,500	2 - 10	150	0,320	120-220-0150	about 2 - 3 weeks
225	225	0,500	2 - 10	150	0,320	120-225-0150	about 2 - 3 weeks
254	254	0,450	2 - 10	150	0,340	120-254-0150	about 2 - 3 weeks
275	275	0,400	2 - 10	180	0,350	120-275-0180	about 2 - 3 weeks
300	300	0,350	2 - 10	180	0,360	120-300-0180	about 2 - 3 weeks
305	305	0,350	2 - 10	180	0,360	120-305-0180	about 2 - 3 weeks
325	325	0,330	2 - 10	180	0,400	120-325-0180	about 2 - 3 weeks
350	350	0,300	2 - 10	180	0,460	120-350-0180	about 2 - 3 weeks
356	356	0,300	2 - 10	180	0,460	120-356-0180	about 2 - 3 weeks
400	400	0,250	2 - 10	270	0,500	120-400-0270	about 2 - 3 weeks
407	407	0,250	2 - 10	270	0,510	120-407-0270	about 2 - 3 weeks
425	425	0,240	2 - 10	270	0,690	120-425-0270	about 2 - 3 weeks
450	450	0,230	2 - 10	270	0,740	120-450-0270	about 2 - 3 weeks
457	457	0,230	2 - 10	270	0,740	120-457-0270	about 2 - 3 weeks
500	500	0,200	2 - 10	270	0,810	120-500-0270	about 2 - 3 weeks
508	508	0,200	2 - 10	270	0,820	120-508-0270	about 2 - 3 weeks
525	525	0,190	2 - 10	270	0,980	120-525-0270	about 2 - 3 weeks
550	550	0,180	2 - 10	270	1,000	120-550-0270	about 2 - 3 weeks
560	560	0,180	2 - 10	270	1,050	120-560-0270	about 2 - 3 weeks
600	600	0,170	2 - 10	270	1,120	120-600-0270	about 2 - 3 weeks
607	607	0,170	2 - 10	270	1,250	120-607-0270	about 2 - 3 weeks
650	650	0,160	2 - 10	270	1,310	120-650-0270	about 2 - 3 weeks
all data at about +23 °C
