ViperFlex - medium temperature hose -70 °C - +250 °C - TSC-Wagner GmbH / medium temperature hoses -70 °C up to +250 °C

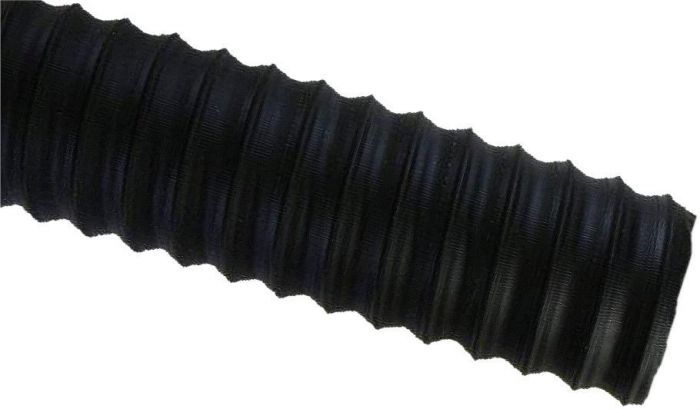

TPE (EPDM) coated polyester fabric

temperature range:: -40 °C up to +130 °C
material:: - TPE (EPDM) coated polyester fabric; - wall thickness ca. 0,4 mm; - spring steel wire
properties:: - very good chemical resistance as fumes of acid, alkalis of solvents; - long term flexible; - uv & ozon resistant; - rot resistant; - lightweight and very flexible
applications:: - for drying and combustion plants; - for chemical fumes
delivery forms:: - Ø 22 up to 500 mm; - colour: black; - length: 10 / 15 m

inner ø at mm	bending radius at mm	working pressure at bar	vacuum at mm WS	roll length at m	weight in kg/m	article number	delivery time at days
22	22	0,450	2600	10 /15	0,080	152-022-4000	about 5-8
25	25	0,450	2000	10 /15	0,090	152-025-4000	about 5-8
32	32	0,400	2000	10 /15	0,140	152-030-4000	about 5-8
40	40	0,350	1500	10 /15	0,160	152-040-4000	about 5-8
50	50	0,350	1000	10 /15	0,210	152-050-4000	about 5-8
60	60	0,350	800	10 /15	0,250	152-060-4000	about 5-8
70	70	0,300	800	10 /15	0,290	152-070-4000	about 5-8
75	75	0,200	700	10 /15	0,310	152-075-4000	about 5-8
80	80	0,200	600	10 /15	0,330	152-080-4000	about 5-8
100	100	0,150	500	10 /15	0,560	152-100-4000	about 5-8
120	120	0,150	400	10 /15	0,670	152-120-4000	about 5-8
125	125	0,130	400	10 /15	0,700	152-125-4000	about 5-8
140	140	0,120	400	10 /15	0,730	152-140-4000	about 5-8
150	150	0,110	400	10 /15	0,780	152-150-4000	about 5-8
175	175	0,090	300	10 /15	0,820	152-175-4000	about 5-8
200	200	0,080	200	10 /15	1,270	152-200-4000	about 5-8
250	250	0,070	200	10 /15	1,600	152-250-4000	about 5-8
300	300	0,050	100	10 /15	1,450	152-300-4000	about 5-8
350	350	0,040	100	10 /15	1,550	152-350-4000	about 5-8
450	450	0,030	100	10 /15	2,000	152-450-4000	about 5-8
400	400	0,040	100	10 /15	1,780	152-400-4000	about 5-8
500	500	0,030	100	10 /15	2,250	152-500-4000	about 5-8
all data at about +23 °C
