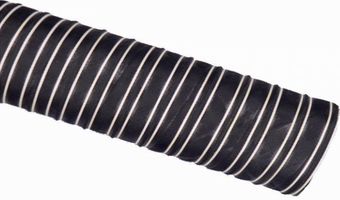

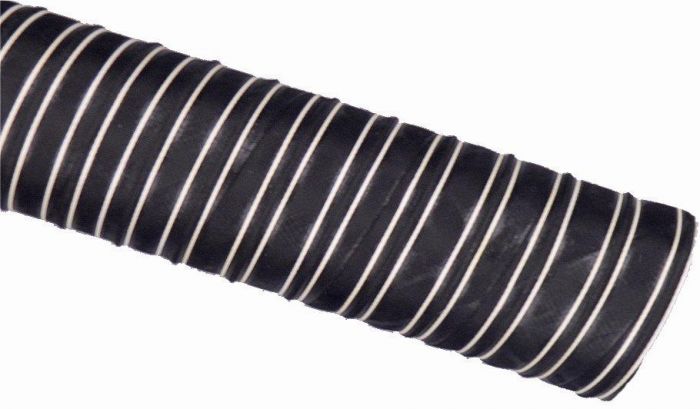

Neo II P - medium temperature hose -70°C - +250°C - TSC-Wagner GmbH / medium temperature hoses -70 °C up to +250 °C

2-ply neoprene coated polyester fabric, rlightweight, very flexible, smooth inside

temperature range:: -35 °C up to +135 °C, peak +150 °C
material:: - 2-ply neoprene coated polyester fabric; - spring steel spiral with white fixing glass cord
properties:: - good chemical resistance; - robust; - vibration proof; - improved vacuum resistance; - smooth inside; - symmetrically bending; - lightweight; - very flexible
applications:: - drying and combustion plants; - hot air and dust
delivery forms:: - Ø 19 up to 305 mm; - colour: black with a white cord; - length: standard 4 m
on request:: - other colours; - short or enlarged lengths; - custom made: for example with cuffs or ...
other versions:: - Neo II - 2-ply neoprene coated glass fibre fabric (art.-no.: 153.2000); - Neo I - 1-ply neoprene coated glass fibre fabric (art.-no.: 153.1000); - Neo I P - 1-ply neoprene coated polyester fabric (art.-no.: 153.1P00)
delivery time:: - on request

inner ø at mm	outer ø at mm	bending radius at mm	working pressure at bar	vacuum at mm WS	roll length at m	weight in kg/m	article number
19	21,60	19	2,500	7100	4	0,105	153-019-2P00
22	25,20	22	2,500	7100	4	0,130	153-022-2P00
25	28,20	25	2,500	7100	4	0,145	153-025-2P00
32	35,20	32	2,500	5900	4	0,180	153-032-2P00
38	41,20	38	2,400	5900	4	0,210	153-038-2P00
41	44,20	41	2,400	5900	4	0,238	153-041-2P00
44	47,20	44	2,400	5900	4	0,255	153-044-2P00
51	54,74	51	2,400	5400	4	0,285	153-051-2P00
55	58,74	55	2,300	5400	4	0,300	153-055-2P00
57	60,74	57	2,300	5400	4	0,330	153-057-2P00
60	63,74	60	2,200	5400	4	0,340	153-060-2P00
63	66,74	63	2,200	4700	4	0,355	153-063-2P00
65	68,74	65	2,200	4700	4	0,375	153-065-2P00
70	73,74	70	2,200	4700	4	0,435	153-070-2P00
76	79,74	76	2,100	4500	4	0,470	153-076-2P00
80	83,74	80	2,100	4100	4	0,490	153-080-2P00
83	86,74	83	2,100	4100	4	0,510	153-083-2P00
90	93,74	90	2,000	4100	4	0,550	153-090-2P00
95	98,74	95	2,000	4100	4	0,570	153-095-2P00
102	106,20	102	1,800	3600	4	0,610	153-102-2P00
108	112,20	108	1,800	3100	4	0,735	153-108-2P00
110	113,20	110	1,700	3100	4	0,755	153-110-2P00
114	118,20	114	1,700	2900	4	0,785	153-114-2P00
120	124,20	120	1,500	2100	4	0,810	153-120-2P00
127	131,70	127	1,500	2100	4	0,860	153-127-2P00
140	144,70	140	1,400	1800	4	0,945	153-140-2P00
152	157,20	152	1,100	1700	4	1,100	153-152-2P00
160	165,20	160	0,900	1500	4	1,146	153-160-2P00
165	170,20	165	0,900	1400	4	1,170	153-165-2P00
178	183,20	178	0,800	1400	4	1,275	153-178-2P00
180	185,20	180	0,800	1400	4	1,300	153-180-2P00
203	208,20	203	0,600	1000	4	1,390	153-203-2P00
229	234,20	229	0,500	800	4	1,605	153-229-2P00
254	259,20	254	0,400	700	4	1,780	153-254-2P00
305	310,20	305	0,200	500	4	2,170	153-305-2P00
all data at about +23 °C
